[ Essential Parameter] |
Model | ES-07 |
Rated Input Voltage | DC 12V-24V |
Rated Output Power | 17W |
[Technical Parameter] |
Input Voltage Range | DC 8V-27V |
No-load Output Voltage | DC 4.75--5.25V |
Rated Output Voltag | 5V |
Accurate Output Voltage | 5V±0.25V |
Output Rated Current | 3.1A |
Current Output Range | 0--3.1A |
Efficiency | 80% |
Output Ripple Resistance | ≤200mV |
Output Overcurrent Protection | 3.1A |
Maximum Output Power | 17W |
Input Overvoltage Protection | 30V |
[Features] |
1. Small size, high efficiency, high cost-effective, portability; stable product quality |

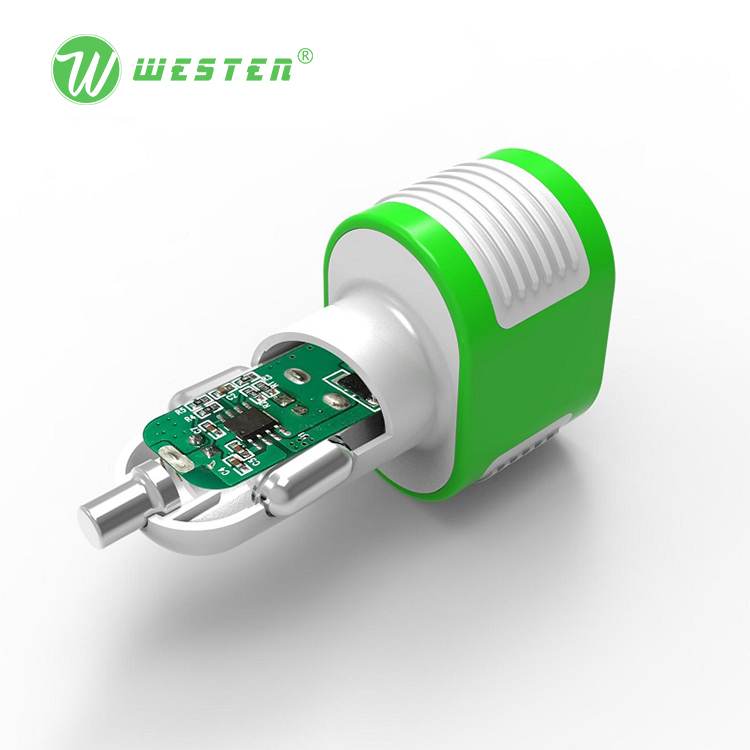

2. Imported integrated IC control circuit, with overload, over voltage, over current, over heat, short circuit protection |
3. Working Temperature: 0 ℃ ~ 40 ℃, 10% ~ 90% RH Storage Temperature: -20 ℃ ~ 85 ℃, 10% ~ 90%, altitude <3000M |
4. Reliability: 3000Vac60 seconds 10mA; Leakage current; 0.25mAmax |
5. Exquisite workmanship, quality material, convenient operation |

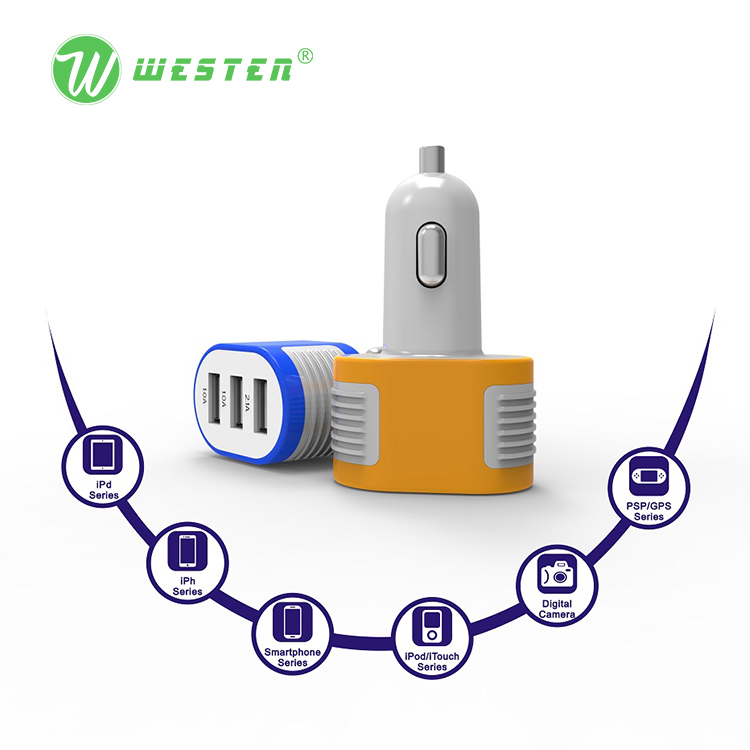

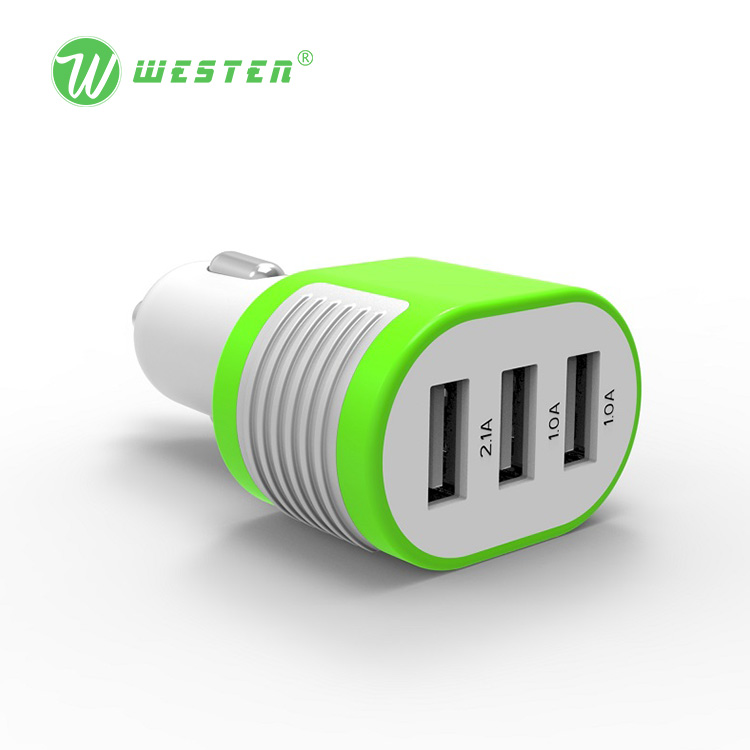

Suitable for: Tablet PC, Phone, Power bank, Bluetooth, Speakers etc, universal usb interface |
