[ Essential Parameter] |

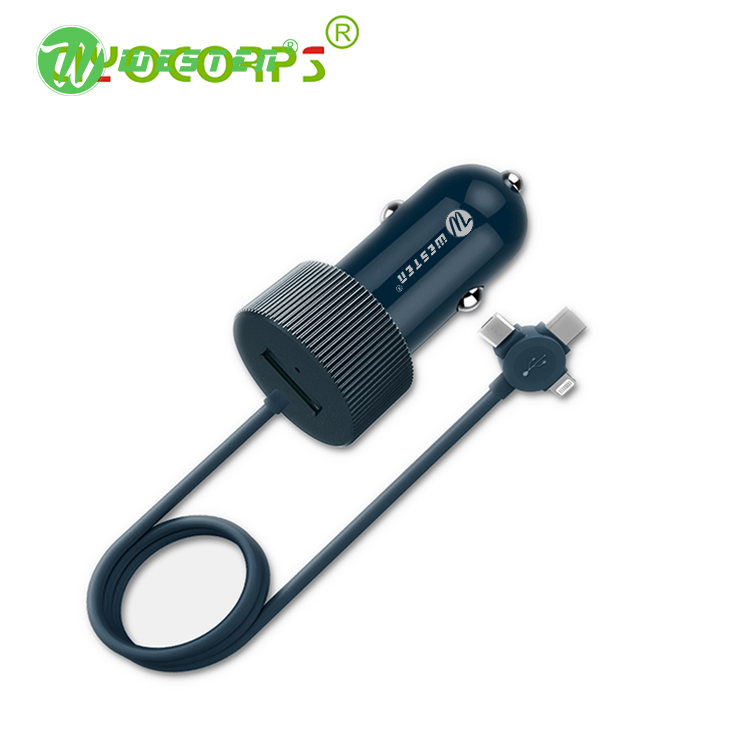

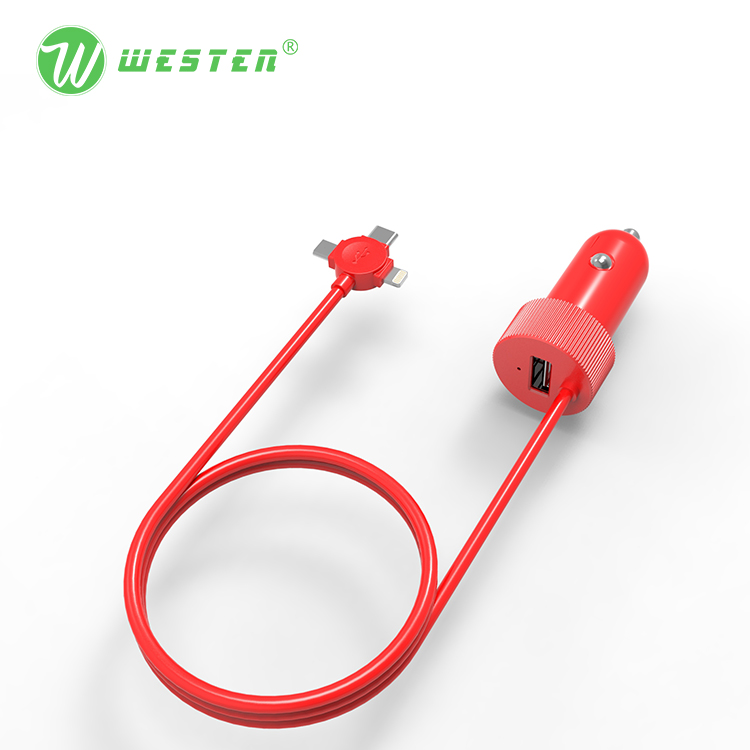

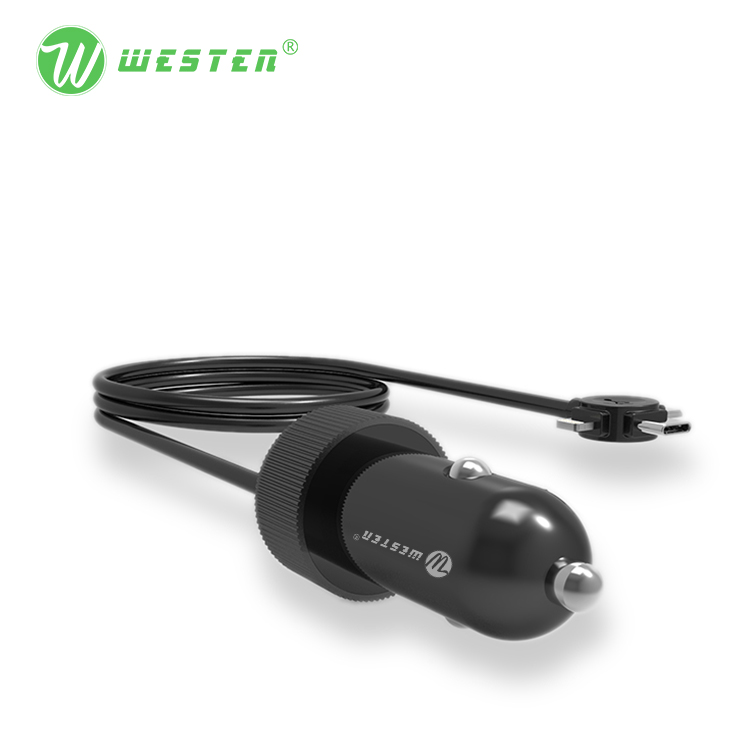

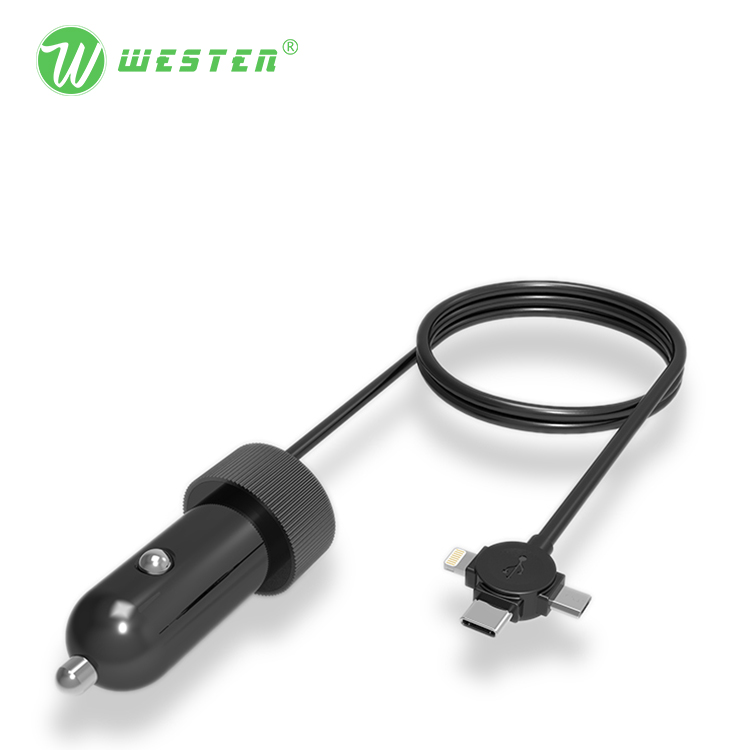

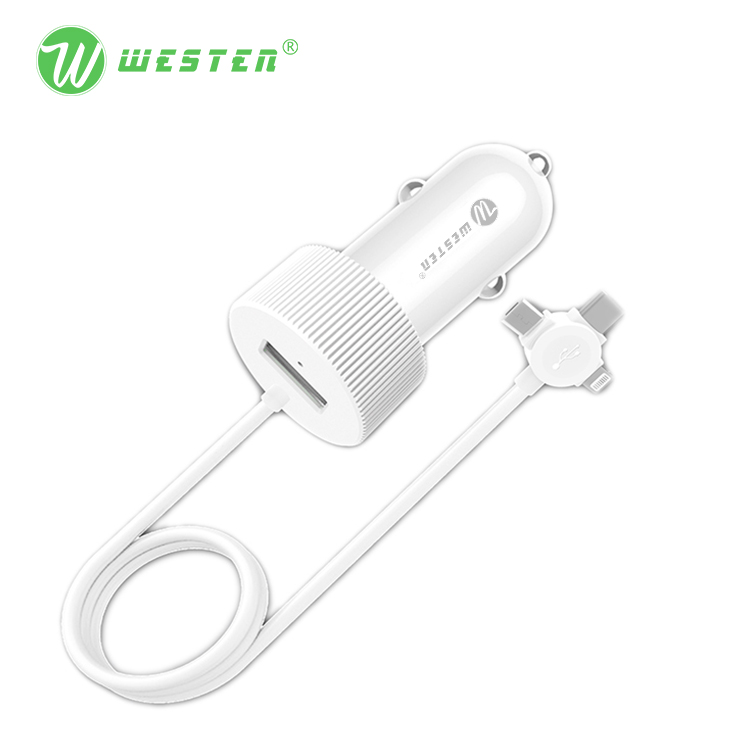

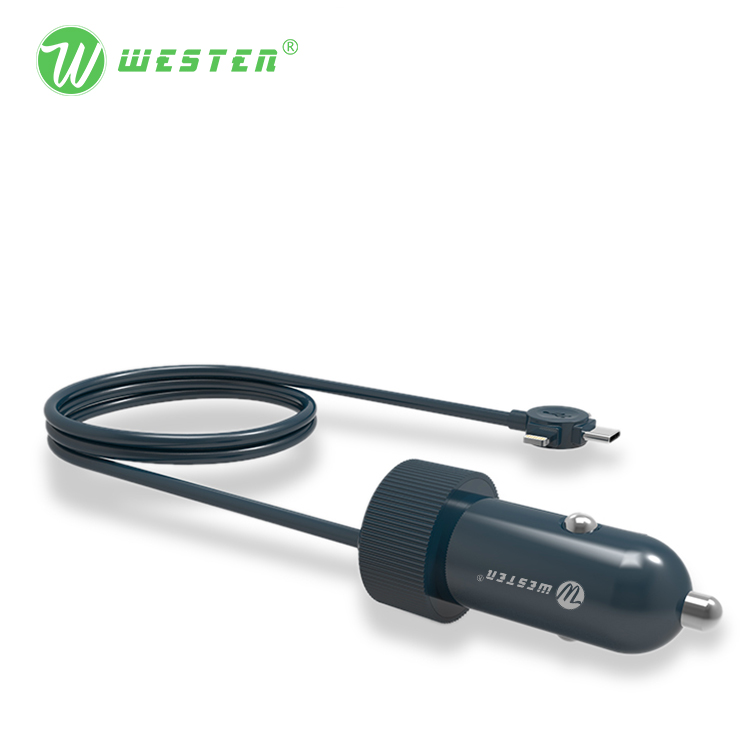

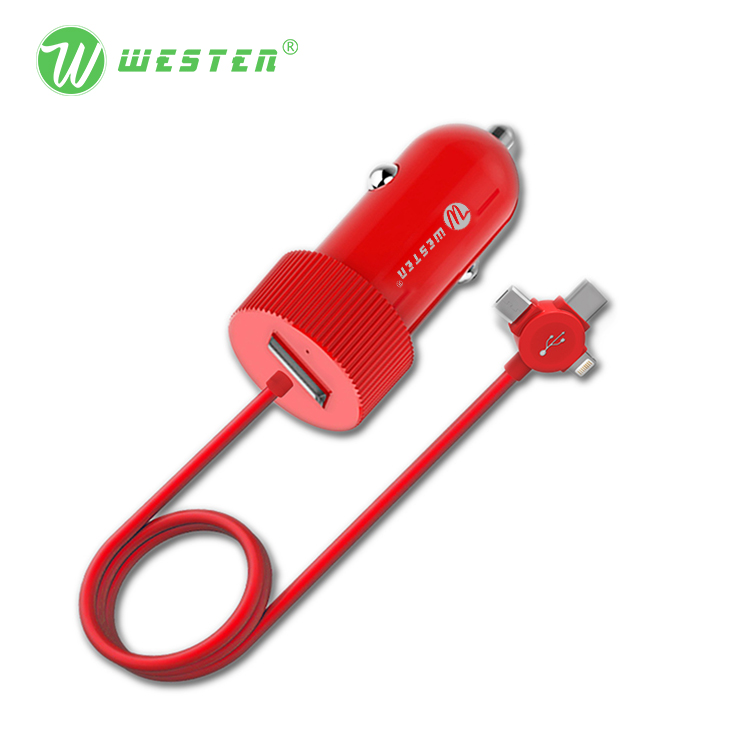

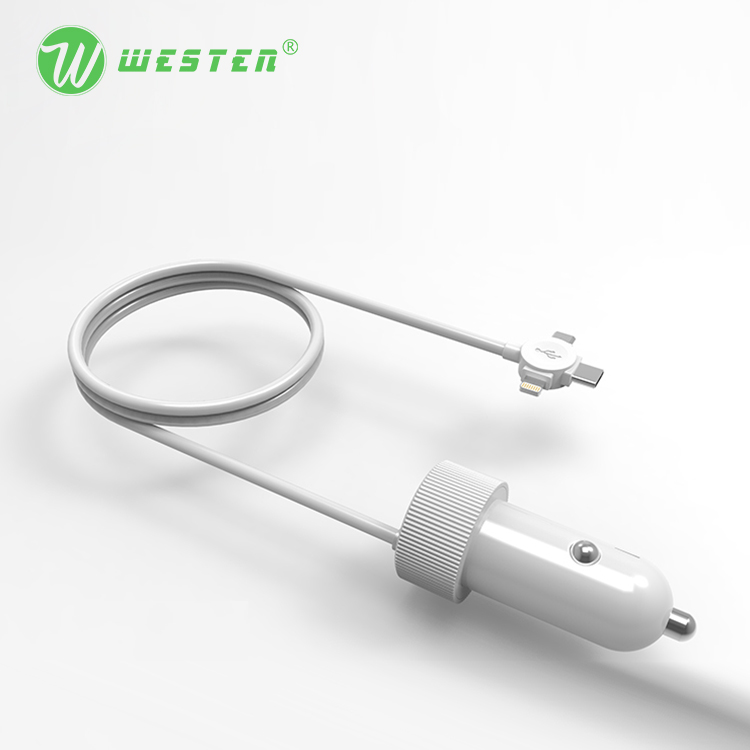

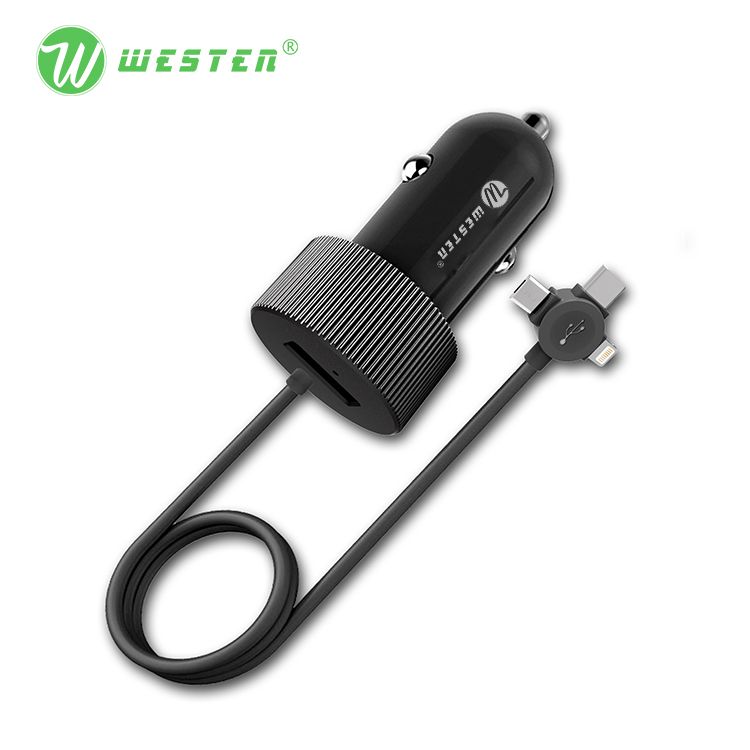

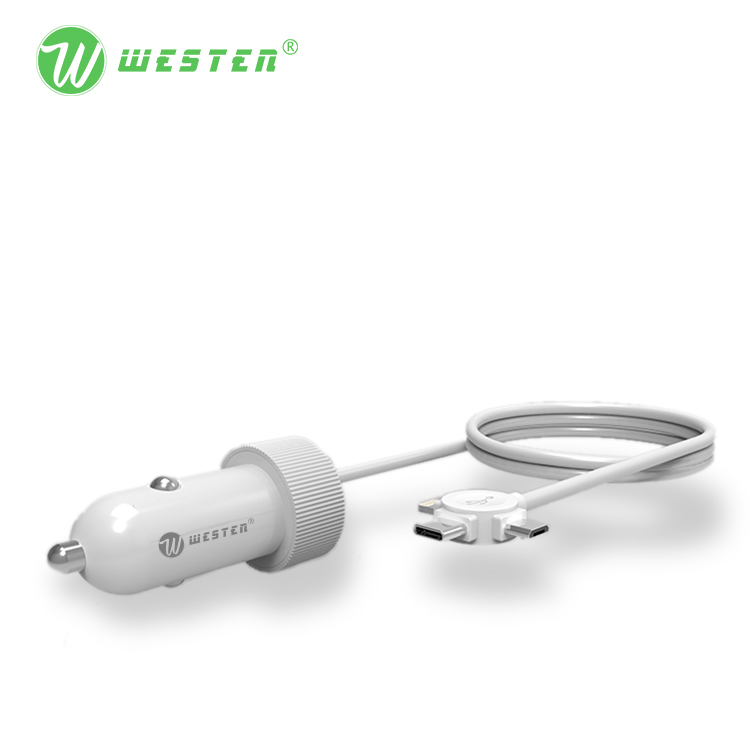

Model: | ES-22 |
Rated Input Voltage: | DC12V-24V |
Rated Output Powe: | 12W |
[Technical Parameter] |
Input Voltage Range: | DC 8V-27V |
No-load Output Voltage: | DC 4.75--5.25V |
Rated Output Voltag: | DC 5V |
Accurate Output Voltage: | DC5V ±0.25V |
Output Rated Current: | 2.4A |
Current Output Range: | 0--2.4A |
Efficiency: | 80% |
Output Ripple Resistance: | ≤200mV |
Output Overcurrent Protection: | 2.4A |
Maximum Output Power: | 12W |
Input Overvoltage Protection: | 30V |
[Features] |
1. Small size, high efficiency, high cost-effective, portability; stable product quality |
2. Imported integrated IC control circuit, with overload, over voltage, over current, |
over heat, short circuit protection |
3. Working Temperature: 0 ℃ ~ 40 ℃, 10% ~ 90% RH |
Storage Temperature: -20 ℃ ~ 85 ℃, 10% ~ 90%, altitude <3000M |
4. Reliability: 3000Vac60 seconds 10mA; Leakage current; 0.25mAmax |
5. Fine workmanship, good material, very easy to use! |
Suitable for: Tablet PC, Phone, Power bank, Bluetooth, Speakers etc, universal usb interface |
