MOQ: 100 pcs
OEM\ODM is acceptable.
Deliver: 15-20 workdays after order confirmed .
Many thanks for your attention on our products.
We will do our best to please you!
[ Essential Parameter] | |||
Model | WTCC-08 | ||
Rated Input Voltage | AC100~240V 50/60HZ | ||
Rated Output Power | 17W | ||
[Technical Parameter] | |||
Input Voltage Range | AC100-240V | ||
No-load Output Voltage | DC 4.75--5.25V 50/60HZ | ||
Rated Output Voltag | 5V | ||
Accurate Output Voltage | 5V±0.25V | ||
Output Rated Current | 3.4A | ||
Current Output Range | 0--3.4A | ||
Output Ripple Resistance | ≤1% | ||
Output Overcurrent Protection | Power automaticly shut off, when load exceeds 130% | ||
Maximum Output Power | 17W | ||
Input Overvoltage Protection | Power automaticly shut off, when output voltage exceeds 120% | ||
[Features] | |||
1. Small size, high efficiency, high cost-effective, portability; stable product quality | |||
2. Imported integrated IC control circuit, with overload, over voltage, over current, over heat, short circuit protection | |||
3. Working Temperature: 0 ℃ ~ 40 ℃, 10% ~ 90% RH Storage Temperature: -20 ℃ ~ 85 ℃, 10% ~ 90%, altitude <3000M | |||
4. Reliability: 3000Vac60 seconds 10mA; Leakage current; 0.25mAmax | |||
5. Exquisite workmanship, quality material, convenient operation | |||

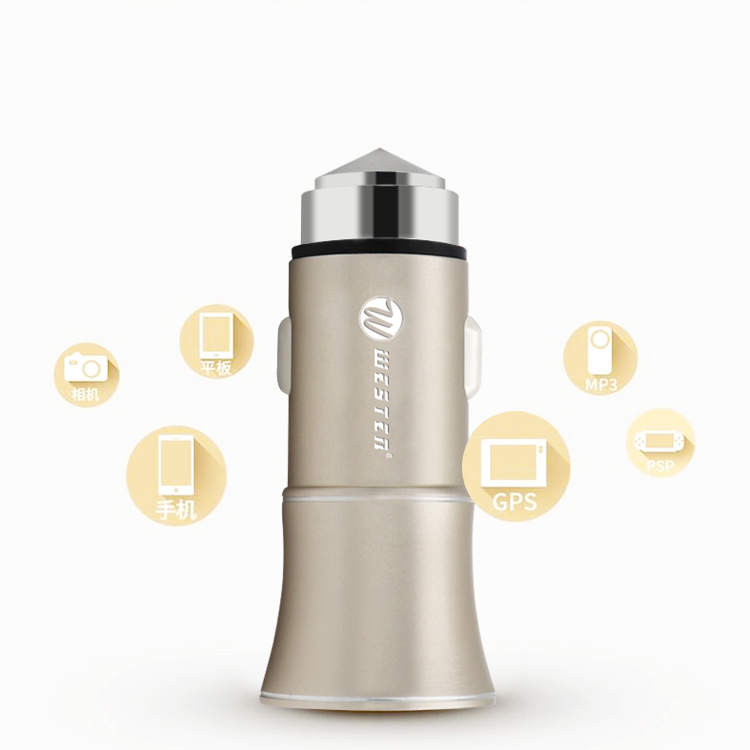

Suitable for: Tablet PC, Phone, Power bank, Bluetooth, Speakers etc, universal usb interface | |||
